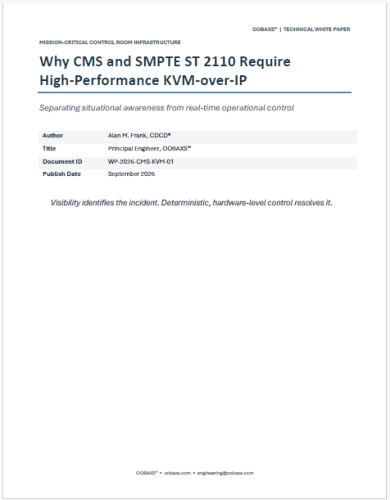

Why Content Management Sys- tems and SMPTE ST 2110 Require- High-Performance KVM-over-IP

Executive Summary Modern mission-control centers, Security Operations Centers (SOCs), and Network Operations Centers (NOCs) rely heavily on Content Management Systems (CMS) and advanced AV-over-IP standards like SMPTE ST 2110 for high-density video routing and macro- situational awareness. However, a critical architectural vulnerability persists when operators confuse visual monitoring with real-time operational control. This whitepaper analyzes the structural latency and Human Interface Device (HID) bottlenecks inherent in video transport protocols, establishing the necessity for a dual-layer architecture that pairs CMS orchestration with dedicated, zero-latency KVM-over-IP and Out-Of-Band (OOB) infrastructure. 1. THE OPERATIONAL DILEMMA: Visibility Is Not Control In an operational emergency, situational awareness is only the first phase of response. Once an anomaly or system failure is identified via wall-mounted multiviewers or Content Management System displays, control room operators must immediately transition from passive observation to active remediation. A CMS is optimized for canvas orchestration: scaling video streams, managing layouts and presets, and routing media across enterprise IP networks. While CMS platforms excel at aggregating disparate visual feeds, attempting to utilize CMS software overlays or basic AV-over-IP control extensions for target system administration exposes severe operational limitations. These limitations appear when the visualization layer is also expected to provide the primary path for target- system administration and appear as: Latency Incompatibility: CMS streams prioritize frame buffer synchronization over bi-directional packet speed. Jitter and Packet Loss: Non-dedicated USB emulation over generic IP networks causes intermittent cursor freeze and command dropouts. Target System Overhead: Software-based control agents install directly on host operating systems, introducing security attack vectors and consuming CPU cycles on target servers. Visibility identifies the incident; only sub-millisecond, hardware-level control resolves it. 2. TECHNICAL ANALYSIS: SMPTE ST 2110 AND THE HID BOTTLENECK The adoption of SMPTE ST 2110 (and its ProAV companion IPMX) represents a massive leap forward in media transport. By unbundling video, audio, and metadata into separate deterministic streams synchronized via IEEE 1588 Precision Time Protocol (PTP), ST 2110 provides unprecedented clarity and sub- frame transport across 10GbE+ COTS network backbones. However, SMPTE ST 2110 was engineered for broadcasting essences, not interactive peripheral control. 2.1 Human Interface Device (HID) - The HID Round Trip Operator input - KVM transmitter - network - target host - GPU render network - KVM receiver - operator display True interactive control requires deterministic round-trip behavior. Variability in polling or packet arrival can alter mouse response and operator feel, while non-native USB extension may fail to preserve extended descriptors needed by specialized hardware, 3D manipulators, touch interfaces, and CAC/PIV security tokens. 2.2 One-Way Synchronization vs. Round-Trip Execution ST 2110 is designed to synchronize media arrival at endpoints using a shared timing reference. It does not, by itself, solve the round-trip execution path required for interactive system administration. High-performance KVM-over-IP architectures address that different requirement with dedicated hardware encoding and direct HID transport, avoiding host-side driver installation while targeting sub-millisecond HID response and subframe video performance. 3. THE BACKBONE ARCHITECTURE: HIGH- BANDWIDTH INFRASTRUCTURE REQUIREMENTS Deploying simultaneous SMPTE ST 2110 uncompressed video feeds alongside real-time, sub-millisecond KVM- over-IP and out-of-band serial connections requires more than standard network switching—it demands a high-bandwidth, ultra-low-latency infrastructure foundation. Combining multi-gigabit video essences with microsecond-sensitive HID packets creates network congestion, packet jitter, and Precision Time Protocol (PTP) degradation if the backbone hardware is improperly specified. 3.1 Critical Hardware Standards - Infrastructure Requirements Managed AV & Enterprise Fabric Switching: Enterprise-grade switching platforms and fabric architectures—including Extreme Networks (VSP Series, Universal 5000 Series, and SLX switches) and Netgear AV Line M4350 appliances—featuring dedicated 10Gb, 25Gb, 40Gb, and 100Gb fiber uplink trunks designed specifically for IGMP v2/v3 snooping, PTP boundary clocking, and zero-loss multicast routing. Structured High-Performance Cabling: Certified Cat6A/Cat7 copper cabling and OM4/OS2 fiber trunks to eliminate cross-talk, signal attenuation, and electromagnetic interference in high-density rack environments. Out-of-Band & Cellular Fallback Routers: Dedicated, hardware-isolated serial console managers and cellular IP routers (e.g., Verizon 5G Katalyst Spark series) to preserve admin access even during complete local network outages. 3.2 Lifecycle Engineering - The OOBAXS™ End-to-End Infrastructure Advantage Specifying high-end software protocols without the underlying hardware capable of supporting them is one of the leading causes of command room deployment failures. OOBAXS™ delivers total lifecycle engineering for critical infrastructure environments: Recommendation & Design: Auditing room bandwidth demands, calculating PTP clock trees, and engineering non-blocking network fabrics across enterprise switching vendors tailored to your visual and operational requirements. Procurement & Supply: Sourcing certified enterprise-grade switches, optical modules, out- of-band gateways, and structured cabling packages built specifically for continuous 24/7/365 mission-critical operation. Turnkey Installation & Commissioning: Field- installing fiber trunks, configuring VLAN isolation and IGMP Querier topologies, and validating sub- millisecond HID round-trip performance before handing over the controls. 4. THE OOBAXS™ DUAL-LAYER REFERENCE ARCHITECTURE The most resilient approach is to stop asking one technology layer to do two fundamentally different jobs. OOBAXS™ proposes a bifurcated architecture in which visualization and operational control are designed as complementary systems. LAYER 1: THE VISUAL ORCHESTRATION LAYER (CMS / ST 2110 / IPMX) Purpose: Video wall layout control, high-density stream decoding, multi-source visual aggregation, and macro-level operational monitoring. Network Fabric: Enterprise fabric switches (e.g., Extreme Networks) and managed COTS network switches (e.g., Netgear AV Line M4350) configured for IGMP querying, PTP timing, and high-bandwidth video routing. LAYER 2: THE REAL-TIME CONTROL & RESILIENCY LAYER (HIGH-PERFORMANCE KVM / OOB) Purpose: Instantaneous, zero-latency target interaction, native USB HID descriptor passthrough, and BIOS-level access. Out-of-Band Integration: Direct access to host serial console management and IP-KVM appliances operating on an isolated, out-of-band management network completely segregated from production traffic. Conclusion A mission-critical command center should not equate the ability to display a system with the ability to control it. CMS and ST 2110 provide powerful tools for visualization and media transport, but operational intervention imposes different requirements: deterministic round-trip HID response, native peripheral support, direct host access, and a management path that remains available when production infrastructure fails. A dual-layer architecture addresses that gap by combining high-density visual orchestration with dedicated high-performance KVM-over-IP and isolated out-of-band management. The result is an environment engineered not only to see an incident, but to respond to it. OOBAXS™ Consulting Services OOBAXS™ provides independent engineering audits, Out-Of-Band architecture design, hardware procurement, and high-performance installation services for critical infrastructure environments, data centers, and enterprise command centers. CONTACT & CONSULTING Web: https://oobaxs.com Email: alan@oobaxs.com
